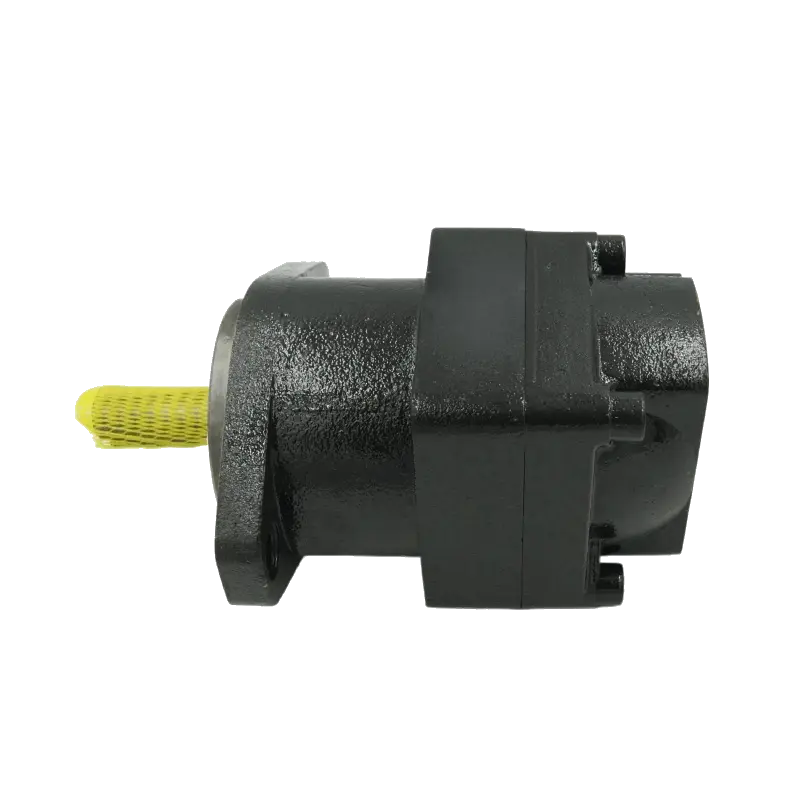

A vane motor is a hydraulic actuator that converts fluid pressure and flow into rotary motion using sliding vanes in a rotor. Pressure acting on the exposed vane area produces an unbalanced force against the cam ring, creating torque that turns the output shaft.

Vane motors are recognized for compact construction, smooth rotation, relatively low torque ripple, and quiet operation at moderate pressure. They are used in industrial and mobile equipment where controlled speed, reversible motion, and consistent rotary performance are important.

Get A Quote

View More Products

Products Functions

Functions of the Vane Motor

Hydraulic Parts for All Construction Machinery

Convert Hydraulic Flow into Shaft Rotation

Pressurized oil enters the vane motor and acts on vanes extended against the cam ring. The pressure difference across the vane surfaces creates turning force on the rotor, converting hydraulic energy into usable mechanical rotation at the output shaft.

Deliver Smooth, Low-Ripple Torque

Multiple vanes remain active around the rotor during operation, distributing the driving force across several chambers. This reduces torque pulsation and helps equipment run with smoother motion, lower vibration, and improved control at steady operating speeds.

Provide Reliable Starting and Speed Control

A vane motor can develop useful starting torque while responding predictably to changes in hydraulic flow. Flow-control valves regulate motor speed, and pressure-control devices protect the drive while allowing it to handle varying machine loads.

Support Reversible Compact Drive Arrangements

Many vane motors can reverse direction when the inlet and outlet flow paths are switched. Their compact form allows installation in space-limited machines and can reduce the need for complex mechanical transmissions or separate reversing mechanisms.

Operate Quietly in Moderate-Pressure Systems

The balanced chamber sequence and smooth internal action help limit hydraulic noise compared with more strongly pulsating designs. With clean fluid, proper lubrication, and suitable pressure, a vane motor can provide efficient service in indoor and operator-sensitive environments.

Uses

Vane Motor Uses

Construction Machinery

━

Vane motors can drive fans, feeders, mixers, and selected auxiliary functions in construction machinery requiring smooth rotary motion.

Agricultural Machinery

━

A vane motor can power fans, conveyors, metering devices, and light implement drives in agricultural machinery.

Marine & Ship Equipment

━

Vane motors support compact winches, steering auxiliaries, pumps, fans, and deck mechanisms in marine and ship equipment.

Mining Machinery

━

Vane motors support mining conveyors, drilling equipment, winches, and auxiliary drive systems that require compact size, smooth operation, and reliable torque output.

Plastic & Metallurgy Industrial Machine

━

Vane motors provide smooth rotation for mixers, machine tools, indexing devices, feeders, and plastic or metallurgy industrial machines.

QUALITY

Certifications & Compliance

Certificates and qualification materials support buyer confidence during supplier
review and sourcing evaluation.

SUPPORT

Help Center

How does a hydraulic vane motor work?

Hydraulic pressure acts on vanes that slide in rotor slots and remain in contact with a cam ring. The difference in pressure across the vane surfaces generates torque, causing the rotor and connected output shaft to turn.

What is the difference between a vane motor and a gear motor?

A vane motor usually provides smoother, quieter rotation with lower torque ripple, while a gear motor has a simpler and more rugged structure. Selection depends on pressure, speed, starting torque, noise, contamination tolerance, efficiency, and cost.

Where is a vane motor most suitable?

A vane motor is well suited to moderate-pressure applications requiring compact size, reversible operation, stable speed, and smooth low-noise rotary motion, including machine tools, feeders, mixers, fans, and light conveyor drives.

What maintenance does a vane motor require?

Use clean hydraulic oil with the correct viscosity, maintain filtration and temperature, avoid excessive back pressure and shock loading, and inspect noise, speed, leakage, seals, bearings, vanes, rotor, and cam-ring surfaces at scheduled intervals.

Can you customize products, and is there a minimum order quantity?

Absolutely. We provide OEM/ODM services and can manufacture according to your samples or technical drawings. Yes, there is a minimum order quantity, but it is flexible. Spare parts often have an MOQ of 1 piece, while complete pumps or motors vary by model—please inquire for details.

How quickly can you deliver products, and what shipping methods are available?

For in-stock items, we can ship within 3 days. For custom or non-stock items, delivery usually takes 7–15 days. We’ll confirm exact timing based on current inventory. We offer flexible shipping via express carriers (DHL, FedEx, UPS) and sea freight (CIF/FOB). We can also deliver to your designated freight forwarder in China.

Are you a factory or a trading company, and how do you ensure product quality?

We are a hybrid—both a manufacturer and a trading company. We produce our own products and also source specific components to offer complete solutions. We follow strict quality control protocols. All parts undergo CNC machining and heat treatment, and each is 100% tested before delivery to guarantee precision and reliability.

What payment methods do you accept, and what is the warranty period?

We accept T/T, L/C, Western Union, Alibaba Trade Assurance, and VISA. For new customers, we usually require full prepayment or a 30% deposit with the balance due before shipment. All products come with a 1-year warranty, provided they are installed and operated under normal conditions.
